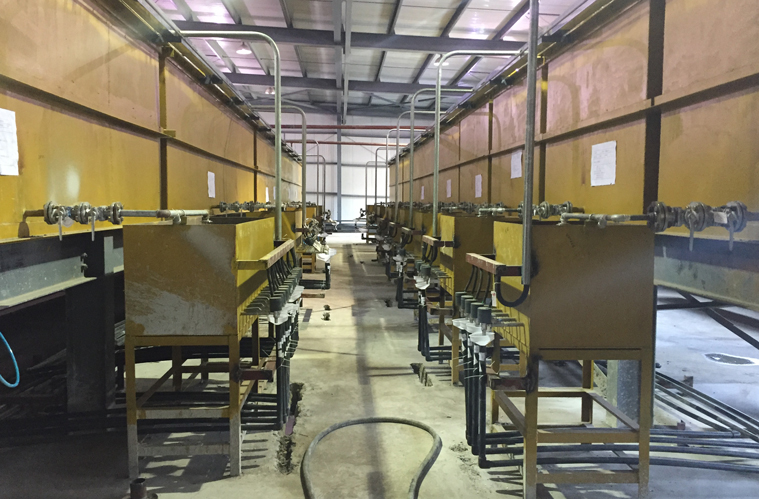

Automatic reagent dosing system

Automatic reagent dosing system is an ideal instrument for reagent dosing in beneficiation plant. Except beneficiation it is widely used in chemical industry, coal washing, wet smelting liquid adding control field. It has the advantages of flexible operation, accurate control, high reliability, etc., to reduce the labor intensity of the field operator, improve the mineral processing indexes, save reagents and environmental protection and the ideal effect is achieved at above aspects.

feature of reagent dosing system

      With high performance PLC, the performance of the high speed, reliable and stable operation, strong anti-interference ability.

      Display and operation of the touch screen, with a good visibility and rich interface, display intuitive.

      Flow control using intelligent control algorithm, control accuracy, calibration is simple, so that the amount of liquid added to expand the scope of

      1-30000ml/min.

      The system is designed to take full account of the electromagnetic compatibility, the selection of the photoelectric isolation circuit and high-power drive parts.

      Solenoid valve with a special stainless steel material and the whole sealing structure, has a good anti-corrosion waterproof.

working principle of reagent dosing system

Automatic reagent dosing system uses constant level regulator to make the liquid level remain constant in constant pressure tank, the outflow from calibration and control valves is up to the opening time of solenoid valve, in the process of calibrating, the opening calibration valve is adjusted and maintained in place, so the actual liquid outflow amount only depends on the control valve’s opening time, this time is automatic controlled by the intelligent charging control instrument.

Specification of Automatic reagent dosing system



REQUEST A QUOTE >>
